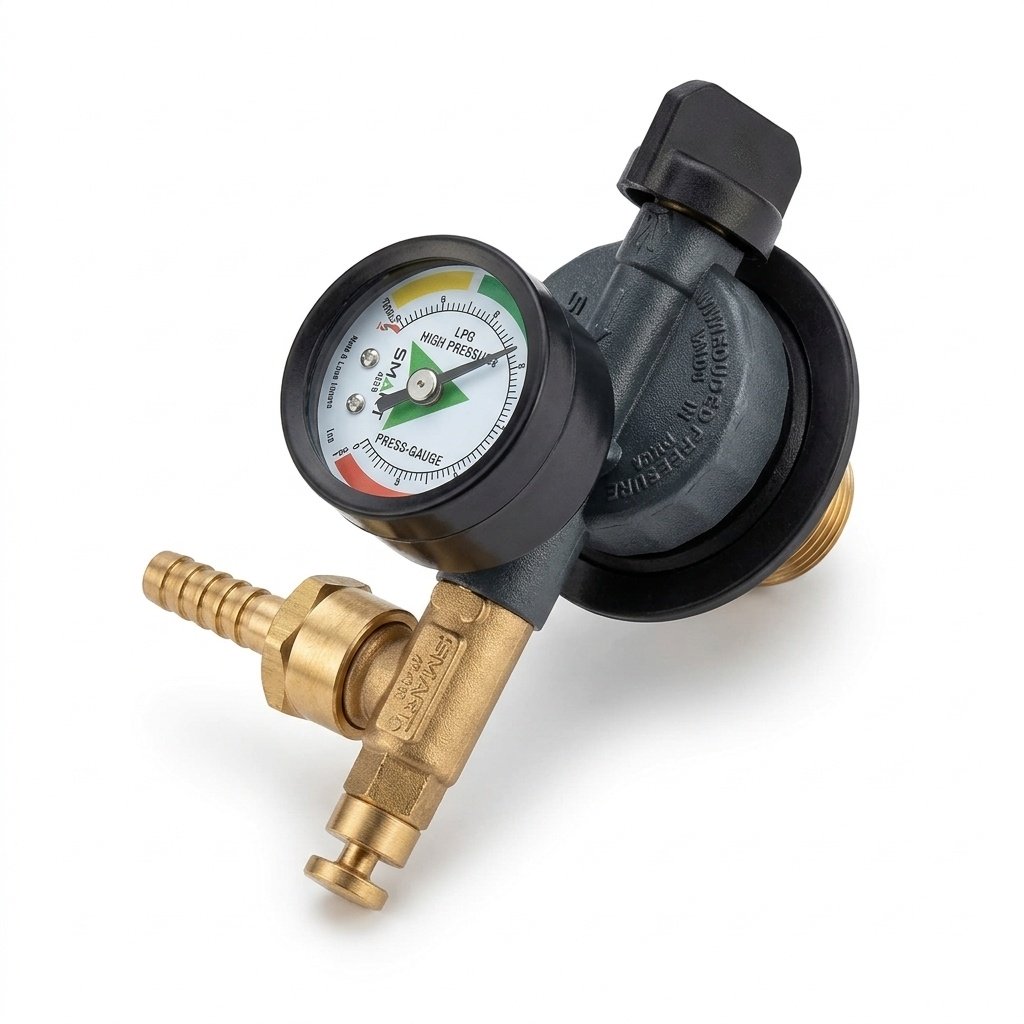

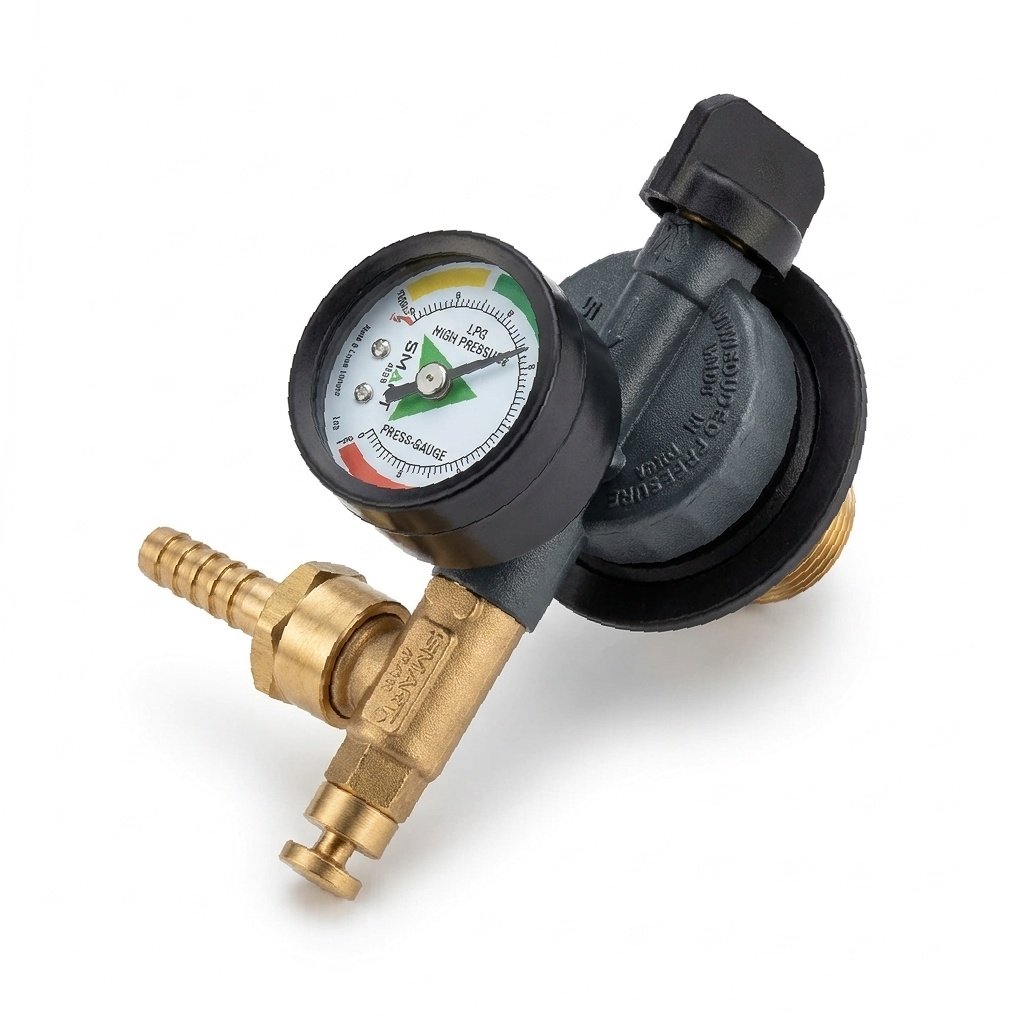

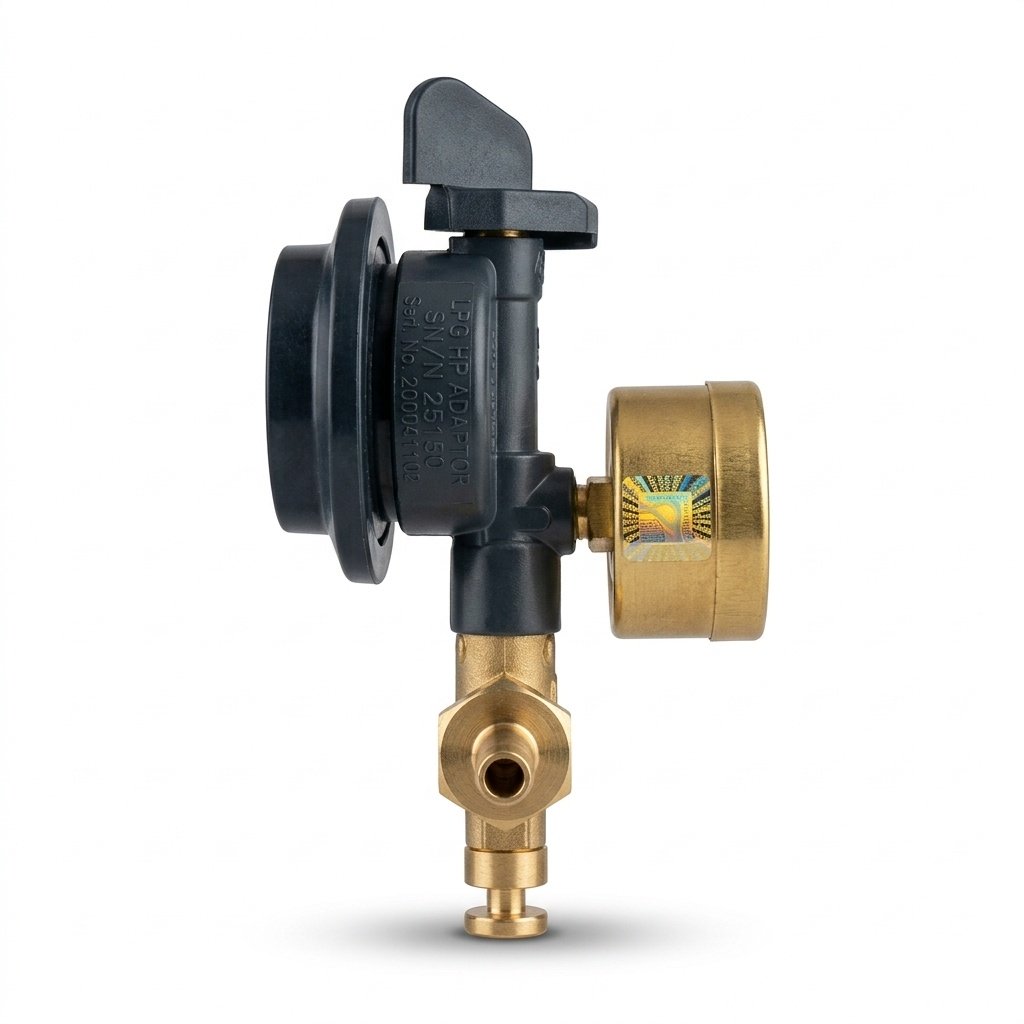

Smart Gaz High-Pressure MLP Gas Adaptor with Leak & Level Display (for 3/4-Burner Modular Kitchen Hobs & Commercial Stoves)
मोड्युलर किचनका ३-४ बर्नर चुलोका लागि १००% उपयुक्त
उच्च बहाव प्रमाणितयो High-Pressure MLP Adaptor विशेष गरी आधुनिक मोड्युलर किचनका ३ वा ४ बर्नरका बिल्ट-इन ग्लास हब (Triple-Ring Brass Wok Burners) र व्यावसायिक चुलोका लागि डिजाइन गरिएको हो। यसले पर्याप्त उच्च ग्यास बहाव प्रदान गर्छ, जसले गर्दा सबै बर्नरहरू एकैपटक पूर्ण आगोमा बिना अटो-कट बल्छन्।
Prefer phone order? Call: 9740849659
उत्पादन विवरण
Overview, features, and safety details
The Smart Gaz High-Pressure MLP Gas Adaptor with Leak & Level Display (LLD) is specially engineered for modern households using 3-burner or 4-burner built-in modular kitchen glass hobs, commercial cooking ranges, restaurant bhattis, and high-BTU wok burners (>3.5 kW) where domestic low-pressure regulators (like standard IGT 30 mbar) automatically shut off or starve the flame.
Why is this required for Modern Modular Kitchen Hobs?
Modern 3 and 4-burner stoves draw more than 1.5 - 2.5 kg/h of gas when multiple burners are lit simultaneously. Standard domestic regulators auto-cut or suffer extreme flame drops. This High-Pressure MLP Adaptor delivers unreduced cylinder flow with precision pressure monitoring, ensuring full, roaring blue flames on all burners at once without auto-cut interruptions.
Key Features & Innovations:
- High Flow / High Pressure Output: Delivers unreduced direct cylinder pressure required for heavy-duty multi-burner hobs and commercial cooking without flame flickering or stalling.
- Integrated Manometer with Leak & Level Display (LLD): Color-coded visual gauge displays gas quantity (Full / Medium / Low / Empty) and allows a 2-minute static leak test before turning on the appliance.
- Multi Leak Proof (MLP) Dual-Seal Collar: Advanced precision O-ring sealing mechanism prevents collar leaks and ensures airtight locking on Nepal LPG cylinders.

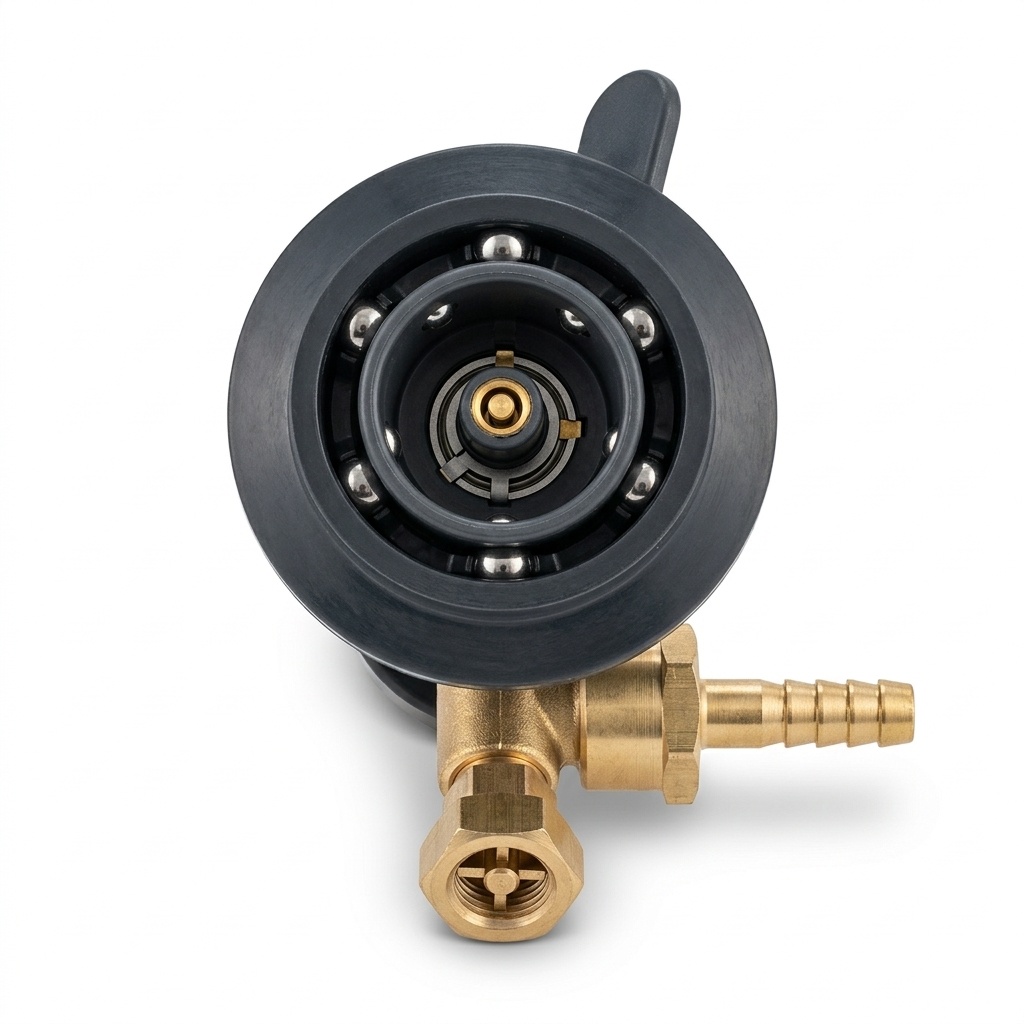

- Universal 22mm / 25.6mm Snap-On Lock: Heavy-duty multi-ball bearing clip-on collar engineered for instant, secure fitment on all Nepal domestic cylinders (Nepal Gas, Sugam, Everest, Siddhartha, HP, etc.).
- Solid Machined Brass Outlet: High-grade brass barbed nozzle compatible with standard 8mm–10mm reinforced LPG gas hoses, complete with integrated safety push valve.
- Heavy-Duty Die-Cast Construction: Zamak 5 zinc alloy chassis built for maximum thermal stability, corrosion resistance, and prolonged service life.
Recommended Applications:
- Modern 3-burner & 4-burner built-in glass kitchen hobs (Faber, Glen, Hindware, Pigeon, Bosch, Elica, etc.)
- Triple-ring brass wok burners (>3.5 kW)
- Commercial canteen and restaurant stoves, tandoor burners, and catering bhattis
- Homes requiring simultaneous multi-flame cooking without regulator trip
प्राविधिक विवरण
Verified factory specifications and parameters
| SKU | SG-HP-MLP4500 |
| Brand | Smart Gaz |
| Model | High-Pressure MLP Adaptor with Leak & Level Display (LLD) |
| Application | Modular Kitchen 3/4-Burner Hobs, High-BTU Wok Burners & Commercial Stoves |
| Technology | Multi Leak Proof (MLP) Dual-Seal Collar System |
| Operating Pressure | Direct Unreduced High-Pressure Flow |
| Pressure Gauge | Integrated Manometer (Leak Testing & Cylinder Gas Level Display) |
| Inlet Connection | 22mm Universal Snap-On Lock with Multi-Ball Bearings |
| Outlet Connection | Heavy-Duty Machined Solid Brass Barbed Nozzle (8mm - 10mm Hose) |
| Body Material | Zamak 5 Zinc Alloy Die-Cast Body + Forged Brass Fittings |
| Safety Mechanism | Static Leak Detection Display & Push-Pin Safety Valve |
| Cylinder Compatibility | Nepal Gas, Sugam, Everest, Siddhartha, HP, and all 35+ Nepal LPG brands |
| Warranty | 1 Year Replacement Warranty |
